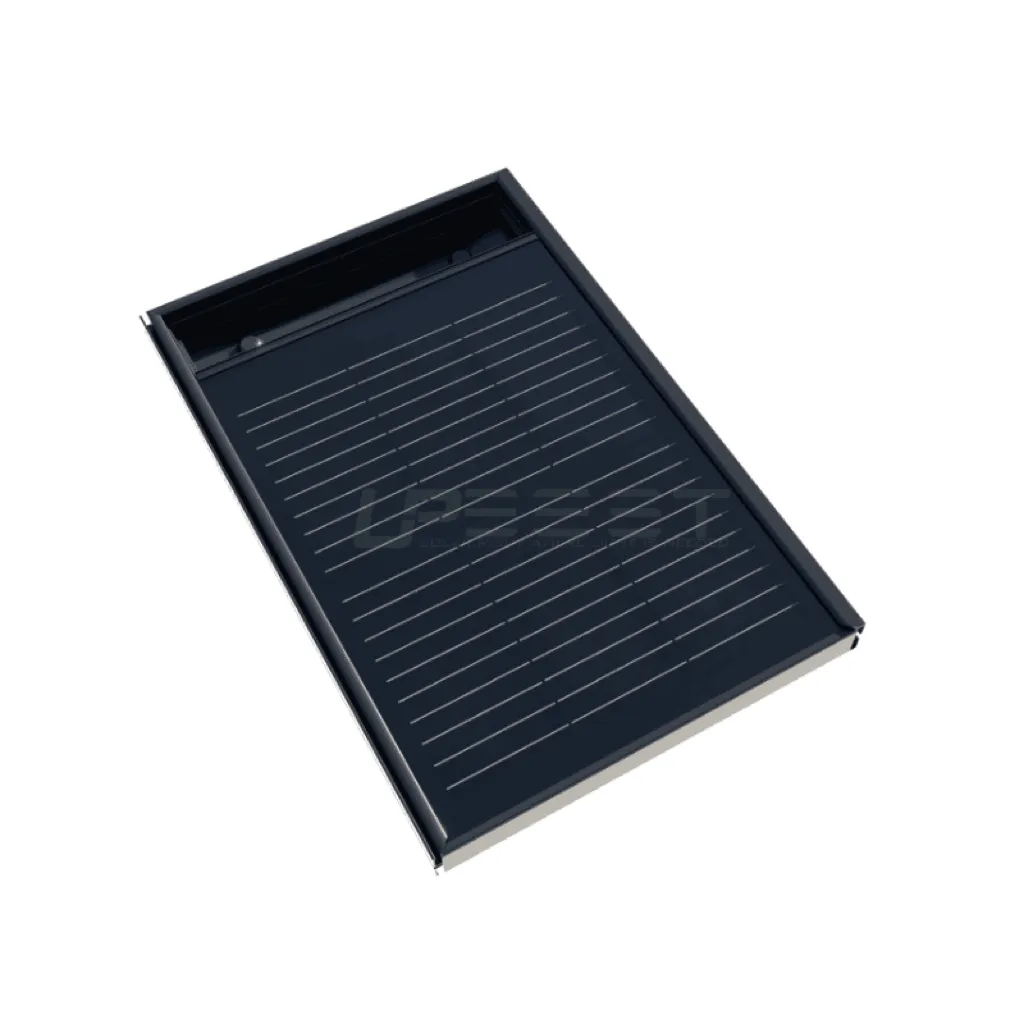

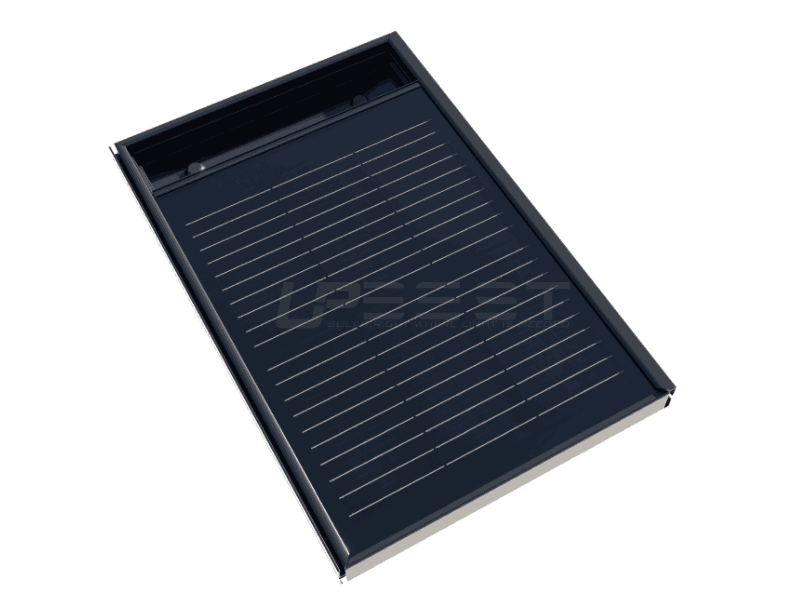

ITEM NO. | UPB-RTSL-022W/UPB-RTSL-044W (SLIDING SOLAR TILE) |

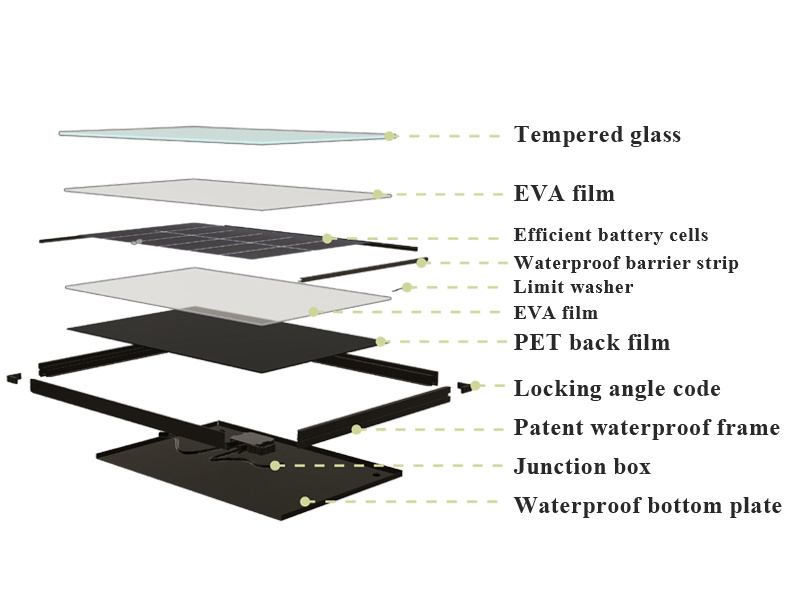

Description | ♦ Rigorous Waterproof System， It features an advanced waterproof system, designed with 4 sealing protections to prevent water infiltration and 3 drainage solutions to efficiently disperse any water, ensuring robust and comprehensive waterproofing. ♦Dustproof， It utilizes a seamless design that blends the interior and exterior spaces, creating a fluid and cohesive environment. ♦ Durable and Reliable， Principal materials include aluminium alloy, tempered glass, polymers and monocrystal silicon whose use period up to 25 years and we offer 10-year total warranty. Its fire-rating meets Class C, safety level reaches Class Ⅱ while the hail-rating satisfies the highest level, Class 3. ♦ Firm and Stable， Each tile has Z-shape windproof components and the purlines are made of anti-corrosive pines which make it superior in wind-resistance. ♦ Easy and Flexible Installation， Each tile, as individual, can be easily installed or disassembled and no expertise required. ♦ A Breathing Roof， The hollow design of the module and the porous arrangement design of the water guide plate. |
Agency Approval | IEC 61215, IEC 61730,TUV CE, MCS |
Maximum static load on the front | 5400Pa |
Maximum static load on the back | 2800Pa |
Q:Are you a factory or trading company? A: We are one of the biggest factories in China，specializing in project planning, intelligent display greenhouse, ecological restaurant, PV glass greenhouse, PV film greenhouse, PC greenhouse and film greenhouse, Solar Farm and related components ect. Every size and dimension details can be customized. Q: Where is your factory located? How can I visit there? A: Our factory is located in Xiamen city, Fujian province,China. You can fly to Xiamen Gaoqi International Airport directly, all our clients, from home or abroad, are warmly welcome to visit us. Q: How does you factory do regarding quality control? A: «Quality is priority» we always attach great important to quality controlling from the beginning to the very end. Q:What information do I need to give you? A:For the detailed solution and quotation,we need some more details as below: 1.Which crop? and supporting systems? 2.Max and average wind/rain/snow load and max and min temperature? 3.What is the land size (L*W) 4.Grow system, on the ground or aquaponincs or hydroponics system? 5.For PV greenhouse: Panel Qty and dimension (length * width * thickness ) AND Panel tilt angle?Lowet distance between panel and ground ? 6.Any plan of layout? If not,you can offer one units as example for us to offer solution and quotation,or how about the ground size (length * width ) then we will do the layout to you.
